When buying a garden shed there are a few things you need to do before you even start shopping for one… things like measuring the available space, deciding on colour and doors and setting a budget. However, one of the most essential things you need to check, which is commonly overlooked… is what wind rating the area you live in has been assigned.

What is a ‘Wind Rating’?

It’s a rating, which is assigned by your council to a certain area based on the geographic region, shielding, topography and terrain. Some areas in the country or even your state will experience different levels of winds- some only a small breeze and others cyclones.

Why do I need to Check My Wind Rating when buying a shed?

Garden sheds can become very dangerous buildings during a windy storm or a cyclone. Even more so than your home at times.

cyclone

Due to their lightweight, foundation, structure and material, if they are not built specifically endure the wind levels in your area then they can be a danger to you. These buildings can be ripped apart in storms if the wrong one has been installed and the pieces can cause damage to its surroundings and even cause death. So it is vital you do your research and purchase the correct shed for your area so you can avoid any of the above.

Australia and New Zealand both unique in their weather because they can be experience a vast amount of different climatic conditions in many different parts of the country on the same day. There are states and or local areas which experience  high temperatures or seasonal flooding, some which experience snow and others heavy rain. But what concerns us most in the Shed industry are those areas that experience high winds or cyclones.

By checking the rating of your area and buying a shed which is designed and engineered to withstand heavy winds, you are not only ensuring the lifetime of your shed but also protecting yourself, family and others in your area.

How do I find out my areas ‘Wind Rating’?

The wind rating of your area is determined by your

  • Geographic region
  • Shielding
  • Topography
  • Terrain conditions

You cannot make an estimate yourself based on past weather events in your area. It is recommended you check with your local council for the legally assigned rating to be safe.

This information that your local council will have, you can easily obtain by giving them a call. You will just need to give them your address to get the info (the address of the property you are planning to build the shed on).

Cheap Sheds Wind Calculator

Cheap Sheds has also created a Wind Calculator for you to use, so you can get a good idea of what your area has been classified as.

<< Click to Access Interactive Calculator>>

HOW TO USE THE CALCULATOR:

STEP 1: Select your state

AU garden sheds wind rating calculator 1

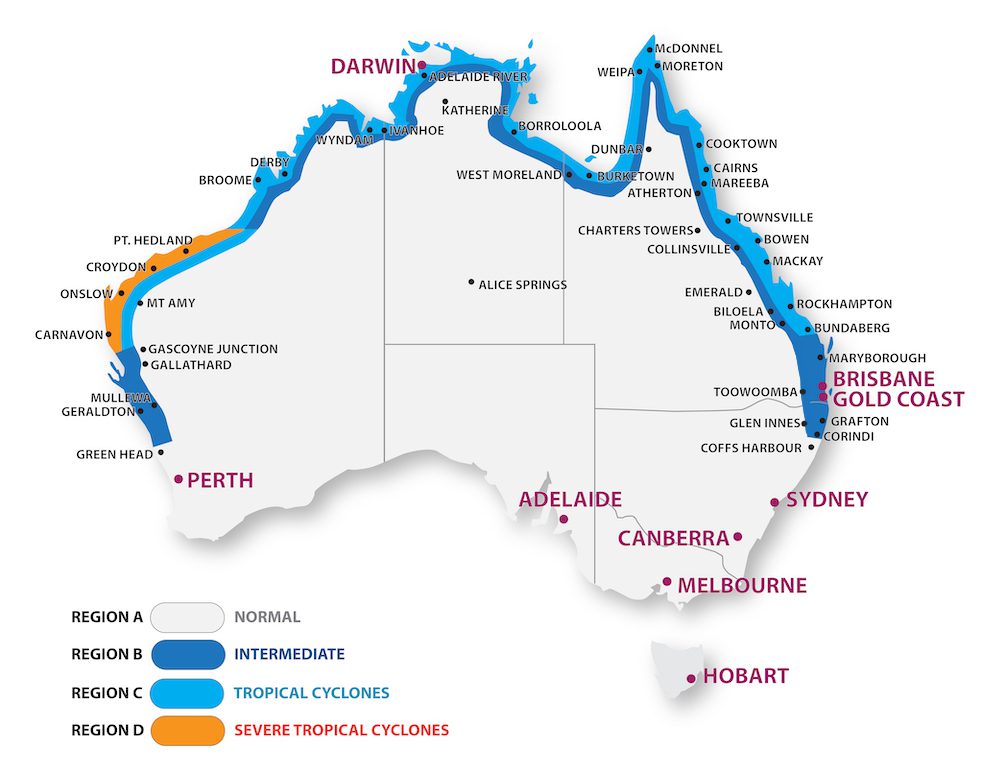

STEP 2: Select your region according to the map

AU garden sheds wind rating calculator 2

STEP 3: Select your terrain/ living area conditions. Hover over each image for a description.

AU garden sheds wind rating calculator 3

STEP 4: Choose the option which best describes the topography of your area. Hover over each image for a description.

AU garden sheds wind rating calculator 4

STEP 5: Then choose the option which best describes the shielding/ how exposed your home is. Hover over each image for a description.

AU garden sheds wind rating calculator 5

STEP 6: You will then be shown your Calculated Wind Rating for the area:

AU garden sheds wind rating calculator 6

You can use this information to begin your research for your ideal Garden Shed and make an informed decision.

For an accurate result please check with your local council>> http://www.cheapsheds.com.au/permits-and-approval

What does it all mean?

Wind rating is classified with “N” or “C”. N stands for “normal” or “non – cyclonic” while C stands for “cyclonic”. This issue gets a little more complicated as some manufacturers still use the old “W” wind rating classification. Absco sheds for example use the “W” rating and our customers ask us often how it compares to the N and C ratings.

We have prepared a rough comparison table below for illustration purposes, to give you an idea on how the W rating compares to the C and N wind rating. I hope that you’ll find it useful. We also displayed the Pa rating and the maximum wind speed that a certain classification can withstand to demonstrate it further.

Pa Rating Klm/hr N Value W value Water rating Ultimate
500Pa 103 N1 ……. 150Pa 700Pa
700Pa 123 N2 W33 150Pa 1000Pa
1000Pa 147 N3,C1 W41 150P 1500Pa
1500Pa 180 N4,C2 W50 200Pa 2300Pa
2200Pa 218 N5,C3 W60 300Pa 3300Pa
3000Pa 254 N6,C4 W70 450Pa 4500Pa





TOP RANGE IN THE MARKET

We have recently added a new shed to our range called the StormSHED by Durabuilt. It is at the moment the toughest Shed on the market specifically engineered for high winds.

The StormSHEDs are suitable for cyclone regions (Region D/Category 2) withstanding wind speeds up to 88 m/s (316 kph), compiling with W60 cyclonic conditions.

0304

If you have any comments or questions about this topic please do not hesitate to leave them below and we’ll address as soon as possible.

SS



2 Comments

  • […] model is engineered to W37 Wind Rating as standard and can be upgraded to W41 and W50. The standard height is 2.25m that can also be […]

  • […] #split {}#single {}#splitalign {margin-left: auto; margin-right: auto;}#singlealign {margin-left: auto; margin-right: auto;}#splittitlebox {text-align: center;}#singletitlebox {text-align: center;}.linkboxtext {line-height: 1.4em;}.linkboxcontainer {padding: 7px 7px 7px 7px;background-color:#eeeeee;border-color:#000000;border-width:0px; border-style:solid;}.linkboxdisplay {padding: 7px 7px 7px 7px;}.linkboxdisplay td {text-align: center;}.linkboxdisplay a:link {text-decoration: none;}.linkboxdisplay a:hover {text-decoration: underline;} function opensingledropdown() { document.getElementById('singletablelinks').style.display = ''; document.getElementById('singlemouse').style.display = 'none'; } function closesingledropdown() { document.getElementById('singletablelinks').style.display = 'none'; document.getElementById('singlemouse').style.display = ''; } Lumber Sheds – Why you ought to Build one of the best Firewood Sheds You could!Modern Garden Shed Designs For Your Backyard From Neoshed5 Tips You Must To understand Woodworking ProjectsGreat Selections For Relocating Your Car Or TruckHow to get six pack abs in 1 MINUTEHow To Make A Shed41 Shed Plans Plus Free Do It Yourself Building LessonsShed Wind Rating – Cheap Sheds Blog […]

  • […] Australian weather conditions so they won’t fade or peel. Generally sheds are designed with a standard wind rating of N3 however, most units can be upgraded with a cyclonic kit to be fully compliant with council […]

  • […] Standard Wind Rating […]

  • Les Mosley says:

    Hello There,
    just for you own benifit
    N and C ratings are no longer comparable as per AS4055 in cyclonic regions, your figures are correct for “N” ratings but regions C & D require higher ULS
    Uls for regions C & D are
    C1 2030
    C2 3010
    C3 4440
    C4 5990
    and if the window or door is within 1200mm of a corner in these areas the ratings change again, I suggest you get a copy of AS4055 for Regions C & D requirements
    W ratings no longer exist

    • Krisztian says:

      Thanks for the comment and update Les.
      We only talk about the W rating (still) as some manufacturers still use that and we get a lot of questions about it.

      We’ll have a look into the AS4055 for Regions C & D and update this post accordingly when we get to it.

      All of our buildings are being tested and certified according to regulations, it is just a metter of getting the information out to the public here on the Cheap Sheds Blog.

      Thank you for your contribution once again Les.

      Have a good day.

      Krisztian
